Rear Parallel Link Installation

Install the rear parallel link with bolt-to-knuckle and the bolt-to-rear crossmember.
Tighten:

Tighten the rear parallel link bolt-to-knuckle and the bolt-to-crossmember to 110 N.m (81 lb-ft).

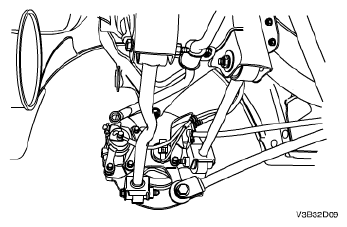

Fig 1: Identifying Rear Parallel Link & Bolts
Courtesy of SUZUKI OF AMERICA CORP.
