Rear Hub and Bearing Assembly Installation

Install the rear hub nuts-to-knuckle.
Tighten:

Tighten the rear hub nuts-to-knuckle to 65 N.m (48 lb-ft).
Install the rear disc brake and the rear brake caliper.
Tighten:

Tighten the rear brake caliper bolts to 45 N.m (33 lb-ft).

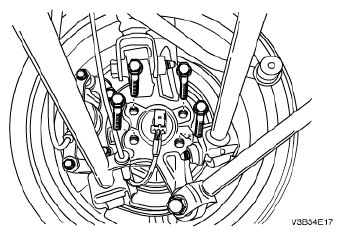

Fig 1: Identifying Rear Brake Caliper Bolts & Disc Screw
Courtesy of SUZUKI OF AMERICA CORP.
Install the rear brake disc screw.
Tighten:

Tighten the rear brake disc screw to 4 N.m (35 lb-in.).

Fig 2: Identifying Rear Brake Caliper Bolts & Disc Screw
Courtesy of SUZUKI OF AMERICA CORP.
