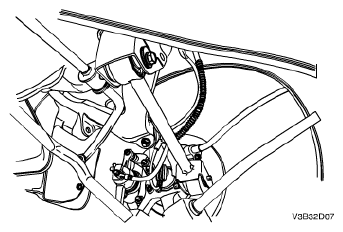

Front Parallel Link Installation
- Install the front parallel link bolt-to-knuckle and the cam bolt-to-rear crossmember.
Tighten:
Tighten the front parallel link bolt-to-knuckle to 110 N.m (81 lb-ft).
- Adjust the rear toe, if needed. Refer to Rear Toe Adjustment .
- Tighten the front parallel link bolt
Tighten:
Tighten the cam bolt to 80 N.m (59 lb-ft).
