Stabilizer Link Removal

  1. Raise and suitable support the vehicle.
  2. Remove the stabilizer shaft-to-stabilizer link nut.
  3. Remove the stabilizer link-to-control arm nut.
  4. Remove the stabilizer link.

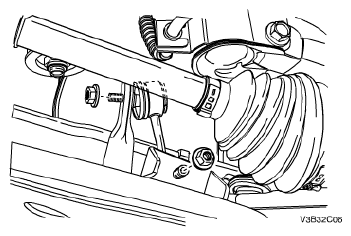

    Fig 1: Identifying Stabilizer Link & Nuts
    G04719279Courtesy of SUZUKI OF AMERICA CORP.
