Control Arm Removal

Tools Required:

KM-333 Ball Joint Remover

1. Raise and suitably support the vehicle. Let the control arms hang free.
2. Remove the wheel. Refer to WHEEL REMOVAL .
3. Remove the control arm joint bolt.
4. Disconnect the ball joint from the knuckle assembly.

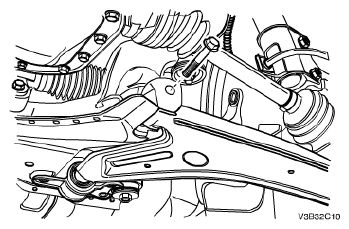

   Fig 1: Identifying Control Arm Ball Joint & Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
5. Remove the control arm bracket bolts.
6. Remove the stabilizer link.

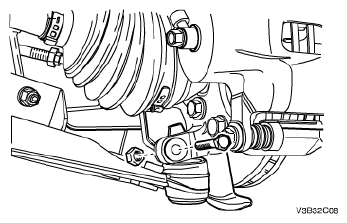

   Fig 2: Identifying Control Arm Bracket & Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
7. Remove the control arm bolt and control arm assembly.

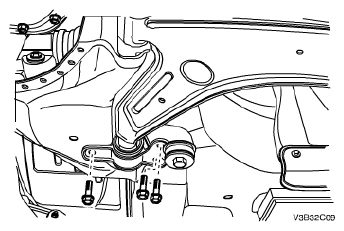

   Fig 3: Identifying Control Arm Assembly & Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
8. Remove the control arm bracket from the control arm by removing the nut.
   Fig 4: Identifying Control Arm Bracket & Nut

   Courtesy of SUZUKI OF AMERICA CORP.
