Centermember Assembly Installation

Install the centermember assembly and bolts.
Tighten:

Tighten the centermember bolts to 90 N.m (66 lb-ft).

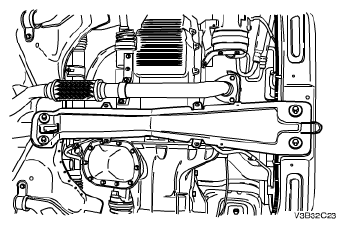

Fig 1: Identifying Centermember Assembly And Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the centermember front damping block bolt and rear damping block bolt.
Tighten:

Tighten the centermember front damping block bolt and rear damping block bolt to 80 N.m (59 lb-ft).

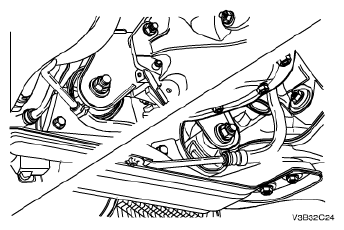

Fig 2: Identifying Centermember Front Damping Block Bolt And Rear Damping Block Bolt
Courtesy of SUZUKI OF AMERICA CORP.
