Power Steering Pump Hoses and Pipes Removal

Siphon the power steering fluid from the fluid reservoir.
Disconnect the pressure line pipe and the supply line hose from the inlet and outlet connections on the power steering pump.

Fig 1: Identifying Pressure Line Pipe And Supply Line Hose
Courtesy of SUZUKI OF AMERICA CORP.

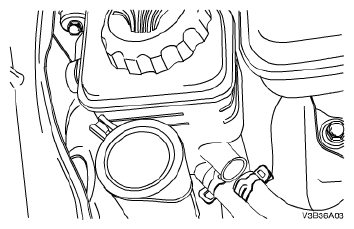

Disconnect the return line from the fluid reservoir.

Fig 2: Identifying Return Line & Fluid Reservoir
Courtesy of SUZUKI OF AMERICA CORP.

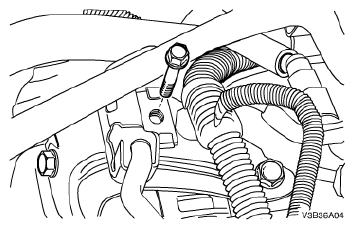

Remove the pressure line bracket securing bolt from the generator.

Fig 3: Identifying Pressure Line Bracket Bolt & Generator
Courtesy of SUZUKI OF AMERICA CORP.
Raise and suitably support the vehicle.

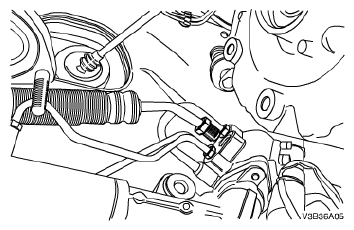

Disconnect the pressure line from the power steering gear inlet.

Fig 4: Identifying Pressure Line & Power Steering Gear Inlet
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the return line outlet pipe from the power steering gear.

Fig 5: Identifying Return Line Outlet Pipe & Power Steering Gear
Courtesy of SUZUKI OF AMERICA CORP.
Remove the return line bracket securing bolts from the center crossmember.

Fig 6: Identifying Return Line Bracket Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the return line securing bracket bolts near the radiator.
Remove the return line and pressure line from the vehicle.

Fig 7: Identifying Return Line And Pressure Line
Courtesy of SUZUKI OF AMERICA CORP.
