P/S Pump Drive Belt Inspection and Adjustment: Adjustment

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

To adjust P/S belt tension, loosen tension pulley bolts and turn tension pulley using hexagon wrench.
Adjust belt tension to specification described in CHECK. Then tighten tension pulley bolts to specified torque.
Tightening torque

P/S belt tension pulley bolt a: 25 N.m (2.5 kg-m, 18.5 lb-ft)

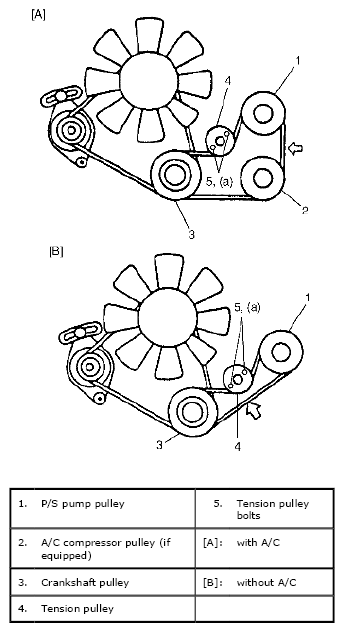

Fig 1: Identifying P/S Drive Belt Components
Courtesy of SUZUKI OF AMERICA CORP.
