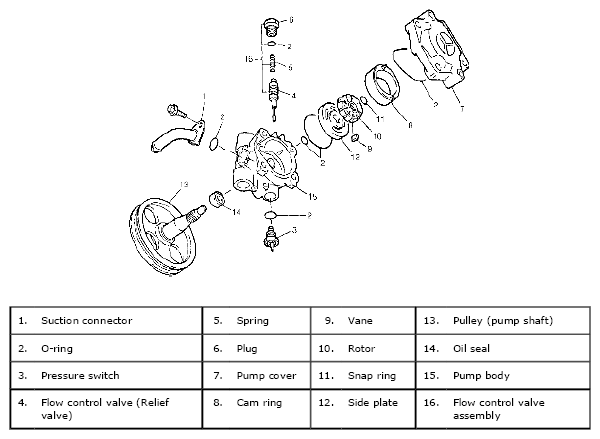

P/S Pump Construction: Components
WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
Power steering (P/S) pump specifications
POWER STEERING (P/S) PUMP SPECIFICATIONS
| Model | Vane type | |
|---|---|---|
| Hydraulic pressure control | Relieved pressure | 7850 kPa (78.5 kg/cm2 , 1116 psi) |
| Control device | Flow control valve and relief valve | |
| Power steering pressure switch | Switch turns on (closes) when the pressure is higher than 2500 - 3500 kPa (25 - 35 kg / cm2
, 356 - 498 psi). ECM uses this signal for idle speed control. |
|
| Capacity | 0.70 - 0.75 L (1.48 / 1.23 - 1.58 / 1.32 US / Imp. pt) | |
| Specified fluid | DEXRON®II, DEXRON®III A/T fluid or equivalent | |
