When using frame contact hoist

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

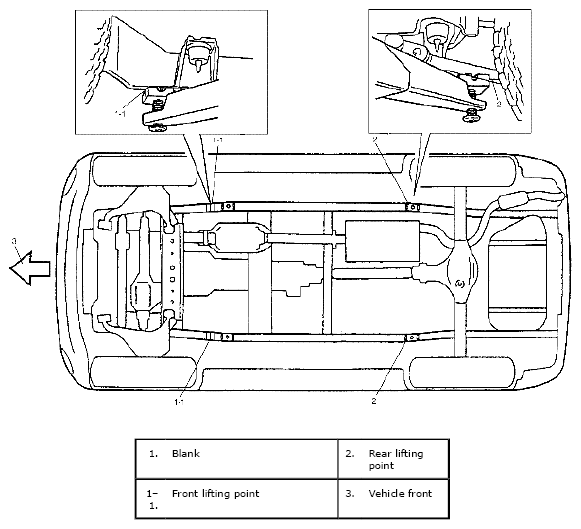

Fig 1: Identifying Vehicle Lifting Points (Frame Contact Hoist)
G04720856Courtesy of SUZUKI OF AMERICA CORP.
