Rear Door Lock Assembly Removal and Installation: Removal
WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
- Remove door trim and door sealing cover referring to Steps 1) to 5) of "Removal" in REAR DOOR GLASS REMOVAL AND INSTALLATION .

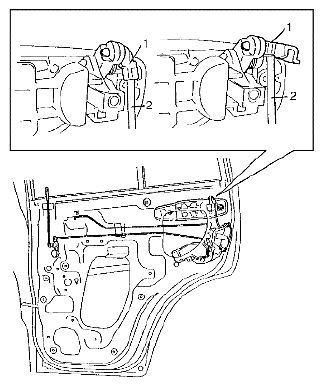

- Remove door opening control rod (2) and door lock control rod (1).
- Remove lock assembly.
