Power Door Lock Actuator Inspection
WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect power door lock actuator coupler.

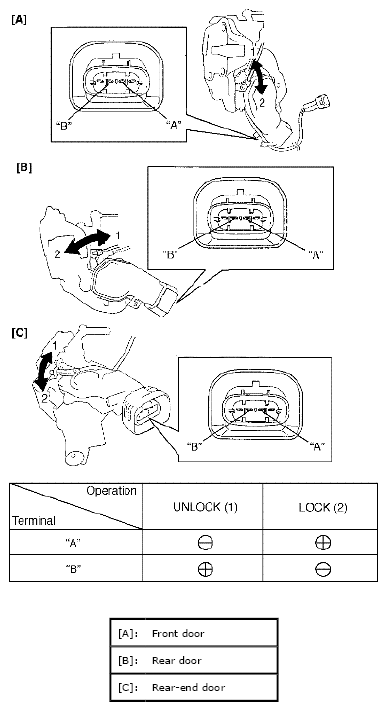

- Connect 12 V battery positive and negative terminals to the door lock actuator terminals shown below.
If it does not follow the table's operation, replace the faulty door lock actuator.
