Head lining Removal and Installation: Installation

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure to install head lining noting the following instructions.

Set roof harness (1) and rear washer hose (2) to head lining (3) with adhesive tape (5) as shown.
For without sunroof model, apply double coated tape (4) to head lining as shown.

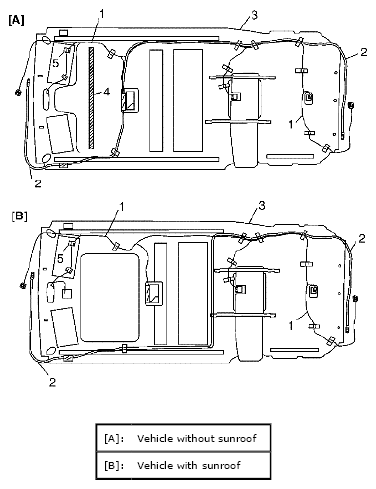

Fig 1: Identifying Roof Harness, Rear Washer Hose, Head Lining, Double Coated Tape & Adhesive Tape
Courtesy of SUZUKI OF AMERICA CORP.
Tighten seat belt anchor bolt as specified torque referring to SEAT BELT CONSTRUCTION .
Install door opening trim (1) as shown.

Fig 2: Identifying Door Opening Trim And Head Lining
Courtesy of SUZUKI OF AMERICA CORP.
