Seat Position Sensor Removal and Installation: Removal
WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cable at battery.
- Disable air bag system referring to DISABLING AIR BAG SYSTEM .
- Remove front seat referring to FRONT SEAT REMOVAL AND INSTALLATION .
- Disconnect seat position sensor connector at seat harness.

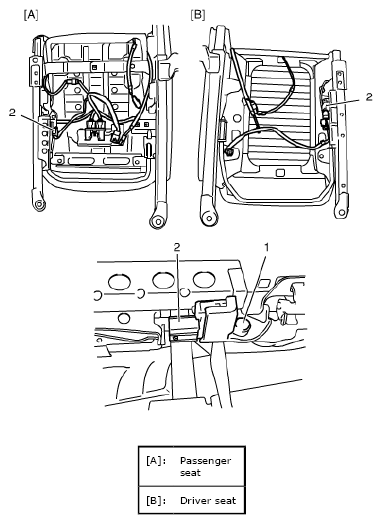

- Remove seat position sensor bolt (1) and seat position sensor (2) from seat adjuster.
