Passenger Air Bag (Inflator) Module Removal and Installation: Removal
WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative cable at battery.
- Disable air bag system. Refer to DISABLING AIR BAG SYSTEM .

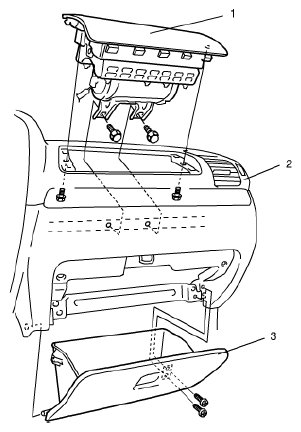

- Open glove box (1) and disconnect glove box damper from glove box. Then, while pressing glove box stopper, pull out glove box from instrument panel.
- Remove glove box (3) from instrument panel (2).
- Remove passenger air bag (inflator) module bolts and then remove passenger air bag (inflator) module (1) from vehicle.WARNING:
- When carrying a live air bag (inflator) module, make sure the bag opening is pointed away from you.
Never carry air bag (inflator) module by wires or connector on the side of the module. In case of an accidental deployment, the bag will then deploy with minimal chance of injury.
- As the live passenger air bag (inflator) module must be kept with its bag (trim cover) facing up while being stored or left standing, place it on the workbench with a slit facing down or use the workbench vise to hold it securely at its lower mounting bracket. This is necessary so that a free space is provided to allow the air bag to expand in the unlikely event of accidental deployment.
- Observe Precautions on Handling and Storage of Air Bag System Components for handling and storing it.
Otherwise, personal injury may result.
- When carrying a live air bag (inflator) module, make sure the bag opening is pointed away from you.
