OCM Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative cable at battery.
Disable air bag system referring to DISABLING AIR BAG SYSTEM .
Disconnect seat harness.
Remove passenger seat referring to FRONT SEAT REMOVAL AND INSTALLATION .
Remove passenger seat undercover.
Disconnect OCM connector (1) from OCM (2).
Using flat end rod or the like (3), remove OCM (2) from passenger seat.

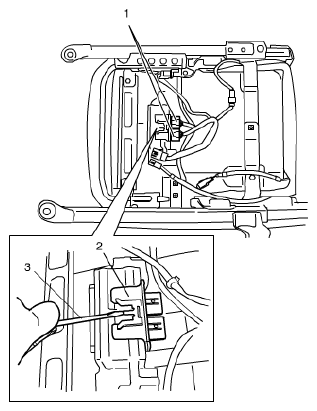

Fig 1: Identifying OCM Connector, OCM And Flat End Rod
Courtesy of SUZUKI OF AMERICA CORP.
