Radio Assembly Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.

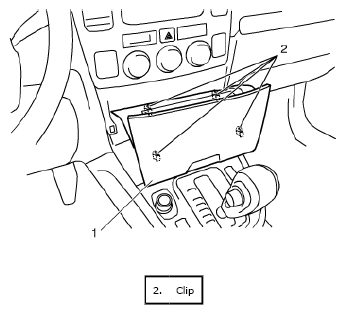

Remove center lower garnish (1).

Fig 1: Identifying Center Lower Garnish & Clip
Courtesy of SUZUKI OF AMERICA CORP.

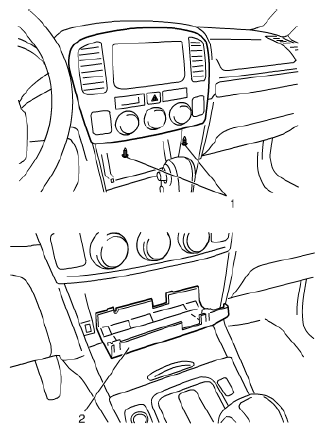

Remove center garnish mounting screw (1) and then pull off center garnish.
Remove harness and controller cover (2).

Fig 2: Identifying Center Garnish Mounting Screw And Controller Cover
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect BCM connectors and HVAC control module connector from each controller.

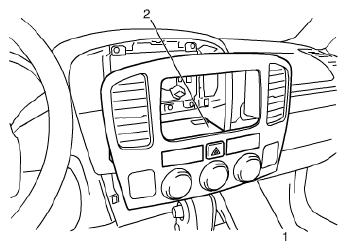

Remove center garnish (1) with BCM (2) and HVAC control module.

Fig 3: Identifying Center Garnish & BCM
Courtesy of SUZUKI OF AMERICA CORP.
Remove 4 mounting screws (3) of radio assembly (4).
Remove radio assembly (4) from instrument panel.
Disconnect radio assembly coupler and antenna feeder from radio assembly (4).

Fig 4: Identifying Mounting Screws & Radio Assembly
