Engine Assembly Removal and Installation: Installation
WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
Reverse removal procedure for installation noting the following points.
- Tighten engine side mounting bracket nuts to specified torque.
Tightening torque
Engine side mounting bracket nut a: 55 N.m (5.5 kg-m, 40.0 lb-ft)
- Tighten transmission case bolts and nuts to specified torque.
Tightening torque
Transmission case bolt and nut b: 85 N.m (8.5 kg-m, 61.5 lb-ft) (for M/T vehicle)
Transmission case bolt and nut b: 80 N.m (8.0 kg-m, 58.0 lb-ft) (for A/T vehicle)
- Tighten torque converter bolts to specified torque (for A/T vehicle).
Tightening torque
Torque converter bolt c: 65 N.m (6.5 kg-m, 47.0 lb-ft)

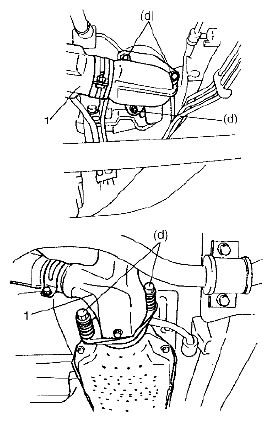

- Tighten bolts and nuts of exhaust No.1 pipe (1) to specified torque.
Tightening torque
Exhaust No.1 pipe bolt and nut d: 50 N.m (5.0 kg-m, 36.5 lb-ft)
- Install front differential housing with differential to chassis referring to FRONT DIFFERENTIAL DISMOUNTING AND REMOUNTING : Front, if necessary.
- Install steering shaft lower assembly referring to STEERING LOWER SHAFT ASSEMBLY REMOVAL AND INSTALLATION .
- Install A/C compressor assembly, referring to COMPRESSOR ASSEMBLY REMOVAL AND INSTALLATION : Manual Type, COMPRESSOR ASSEMBLY REMOVAL AND INSTALLATION : Automatic Type.
- Install P/S pump assembly referring to P/S PUMP REMOVAL AND INSTALLATION.
- Adjust accelerator cable play referring to ACCELERATOR CABLE ADJUSTMENT
- Refill engine with engine oil referring to ENGINE OIL AND FILTER CHANGE.
- Refill cooling system referring to COOLING SYSTEM FLUSH AND REFILL .
- Check to ensure that all fasteners and clamps are tightened.
- Upon completion of installation, verify that there is no fuel leakage, coolant leakage, P/S fluid leakage or exhaust gas leakage at each connection.
