DTC P0154: O2 Sensor (Bank 2 Sensor-1) No Activity Detected: Wiring Diagram

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

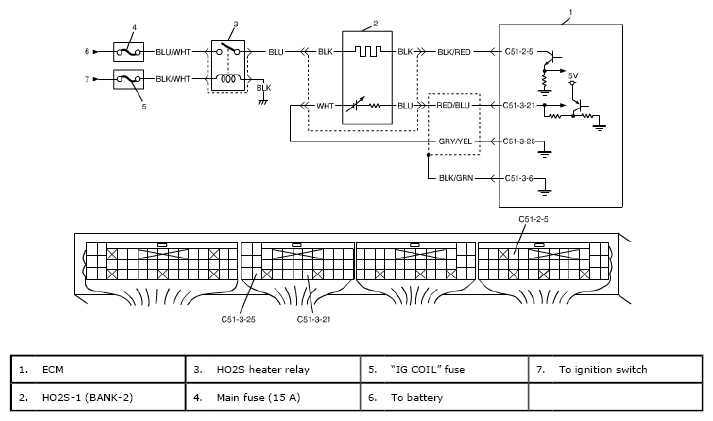

Fig 1: DTC P0154 - Wiring Diagram
G04720969Courtesy of SUZUKI OF AMERICA CORP.
