Transfer Shift Actuator Motor Position Sensor

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Measure resistance of transfer shift actuator motor position sensor at all shift positions as follows.

Position reduction drive shift cam (1) at each shift position below by connecting battery to terminals "a" and "b" of transfer shift actuator connector (4) as shown in figure.
Measure resistance between "c" and "d" terminals of transfer shift actuator connector (4).
If measured resistance is out of specification, replace transfer shift actuator (3).

Transfer shift actuator position sensor resistance

2H: Approx. 347 Ω

2H - 4H: Approx. 197 Ω

4H: Approx. 122 Ω

4H - N: Approx. 77 Ω

N: Approx. 47 Ω

N - 4L: Approx. 27 Ω

4L: Approx. 12 Ω

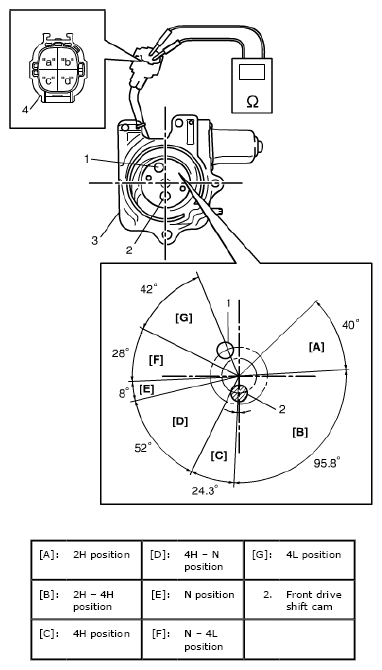

Fig 1: Checking Transfer Shift Actuator Motor Position Sensor
Courtesy of SUZUKI OF AMERICA CORP.
