Without Using SUZUKI Scan Tool
WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch to ON position.

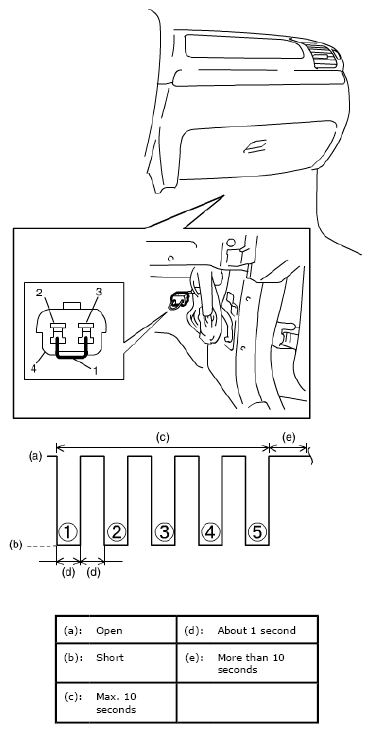

- Using service wire (1), connect diagnosis switch terminal ("PNK" wire) (2) to ground terminal ("BLK" wire) (3) in diagnosis connector (4) more than 5 times at about 1 second interval within 10 seconds.
- Wait more than 9 seconds.
- Perform DTC Check and confirm that DTC No. 12 is displayed.
