DTC Clearance Using Monitor Connector

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column hole cover (1).
  2. Turn ignition switch ON.
  3. After 6 seconds or more, repeat connecting and disconnecting diagnosis switch terminal (3) and ground terminal (4) of monitor connector (2) 5 times at about 1 second interval within 10 seconds, using service wire.
  4. Check TCM that no malfunction DTC remains in memory of it.

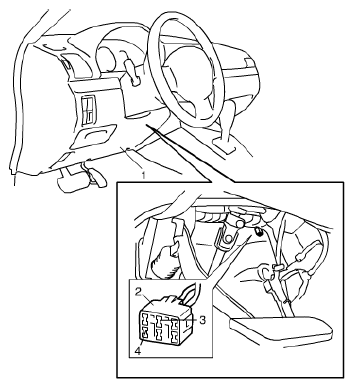

Fig 1: Identifying Monitor Connector, Terminals, & Steering Column Hole Cover
G04722536Courtesy of SUZUKI OF AMERICA CORP.
