Transmission Shift Control Lever Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Remove covers (1) from center console boxes.
Remove rear center console box upper cover (2).
Remove 6 screws then take off rear center console box and front center console box.

Fig 1: Identifying Rear Center Console Box Upper Cover & Center Console Box Covers
Courtesy of SUZUKI OF AMERICA CORP.
Remove console box bracket (2) and boot cover (1).
Lift up boot No.3 (3) and boot No. 2 (5).
Remove boot clamp and then lift up boot No. 1 (4) from transmission shift lever case (7).
With gear shift control case cover (8) pushed down with fingers, turn it to counter clockwise and take out shift control lever (6).

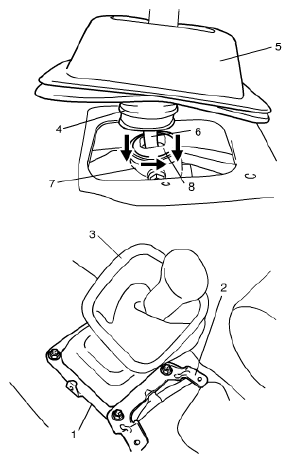

Fig 2: Identifying Boot Cover, Console Box Bracket, Boot No. 3, Boot No. 1, Boot No. 2, Shift Control Lever, Transmission Shift Lever Case And Gear Shift Control Case Cover

Courtesy of SUZUKI OF AMERICA CORP.
