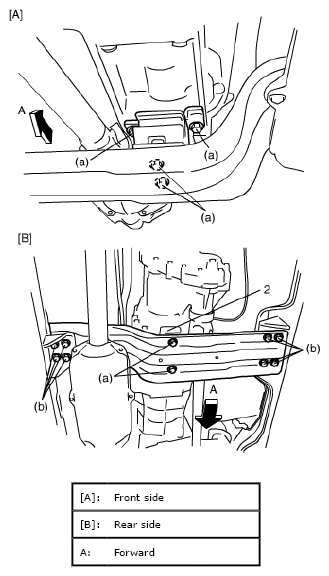

Engine Rear Mounting Replacement
WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.
When replacement of mounting parts are necessary, torque bolts and nut as specified below.
Tightening torque
Engine rear mounting bolts a: 55 N.m (5.5 kg-m, 40.0 lb-ft)
Engine rear mounting member bolts b: 55 N.m (5.5 kg-m, 40.0 lb-ft)
