Strut Damper Removal and Installation: Removal

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Remove strut tower bar (1) (if equipped).

Fig 1: Identifying Strut Tower Bar
Courtesy of SUZUKI OF AMERICA CORP.
Hoist vehicle, allowing front suspension to hang free.
Remove wheel.

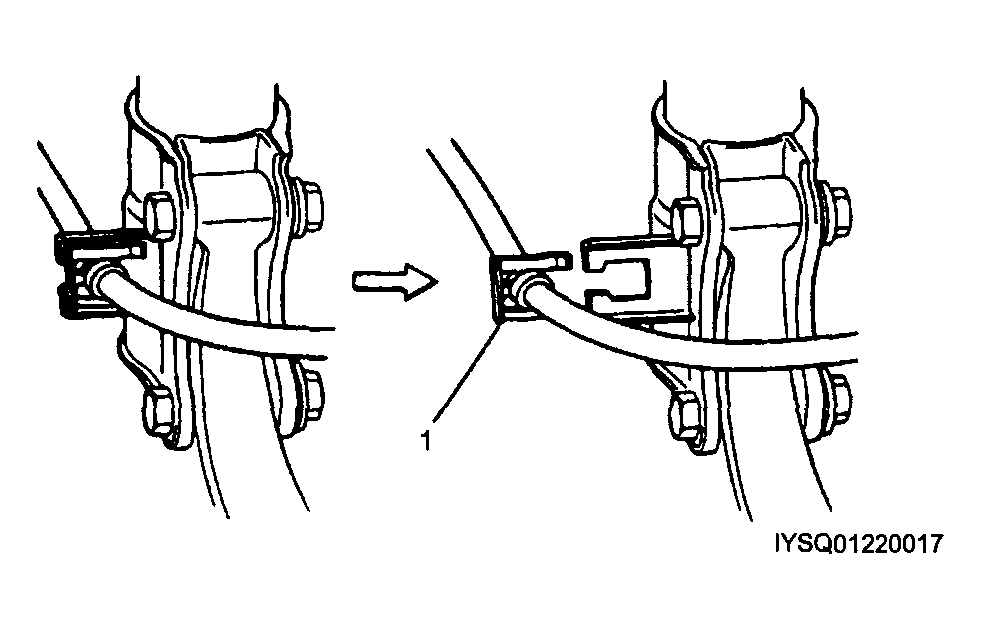

Remove E-ring (1) securing brake hose and take brake hose off strut bracket as shown.

Fig 2: Identifying E-Ring
Courtesy of SUZUKI OF AMERICA CORP.
If equipped with ABS, remove front wheel speed sensor harness clamp bolt (1).

Fig 3: Identifying Front Wheel Speed Sensor Harness Clamp Bolt
Courtesy of SUZUKI OF AMERICA CORP.

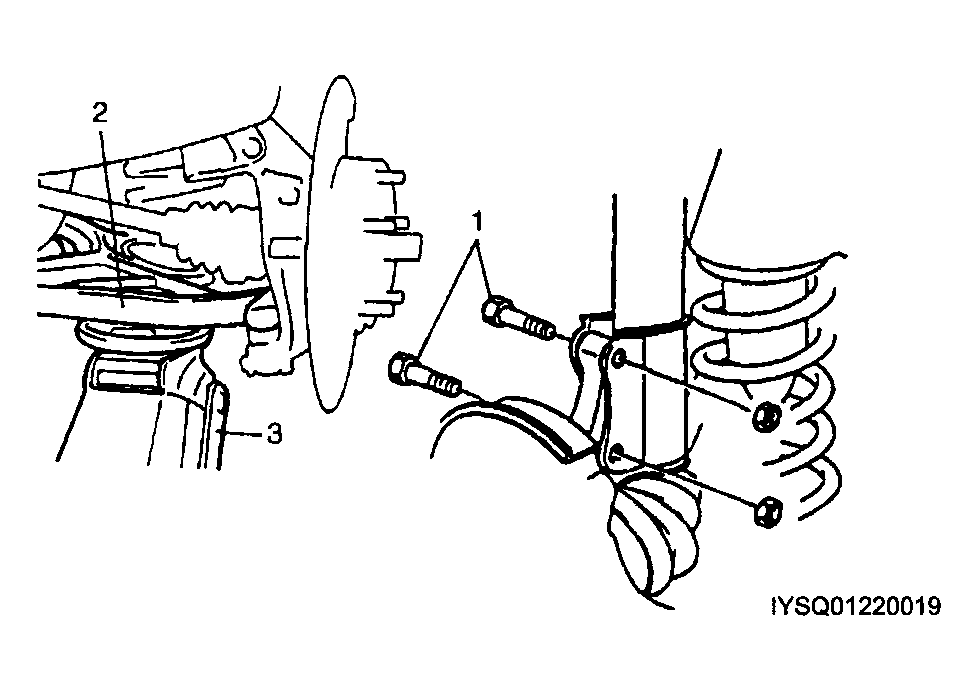

Remove strut bracket bolts (1), then support lower arm (2) with jack (3).

Fig 4: Identifying Strut Bracket Bolts, Lower Arm & Jack
Courtesy of SUZUKI OF AMERICA CORP.
Remove strut support nuts (1). Hold strut by hand so that it will not fall off.

Fig 5: Identifying Strut Support Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Remove strut.
Remove strut nut (1), upper seat (2), support (3), dust boot (4) and lower seat (5) from strut damper (6).

Fig 6: Identifying Strut Nut, Upper Seat, Support, Dust Boot, Lower Seat & Strut Damper

Courtesy of SUZUKI OF AMERICA CORP.
