Strut Damper Removal and Installation: Installation
WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

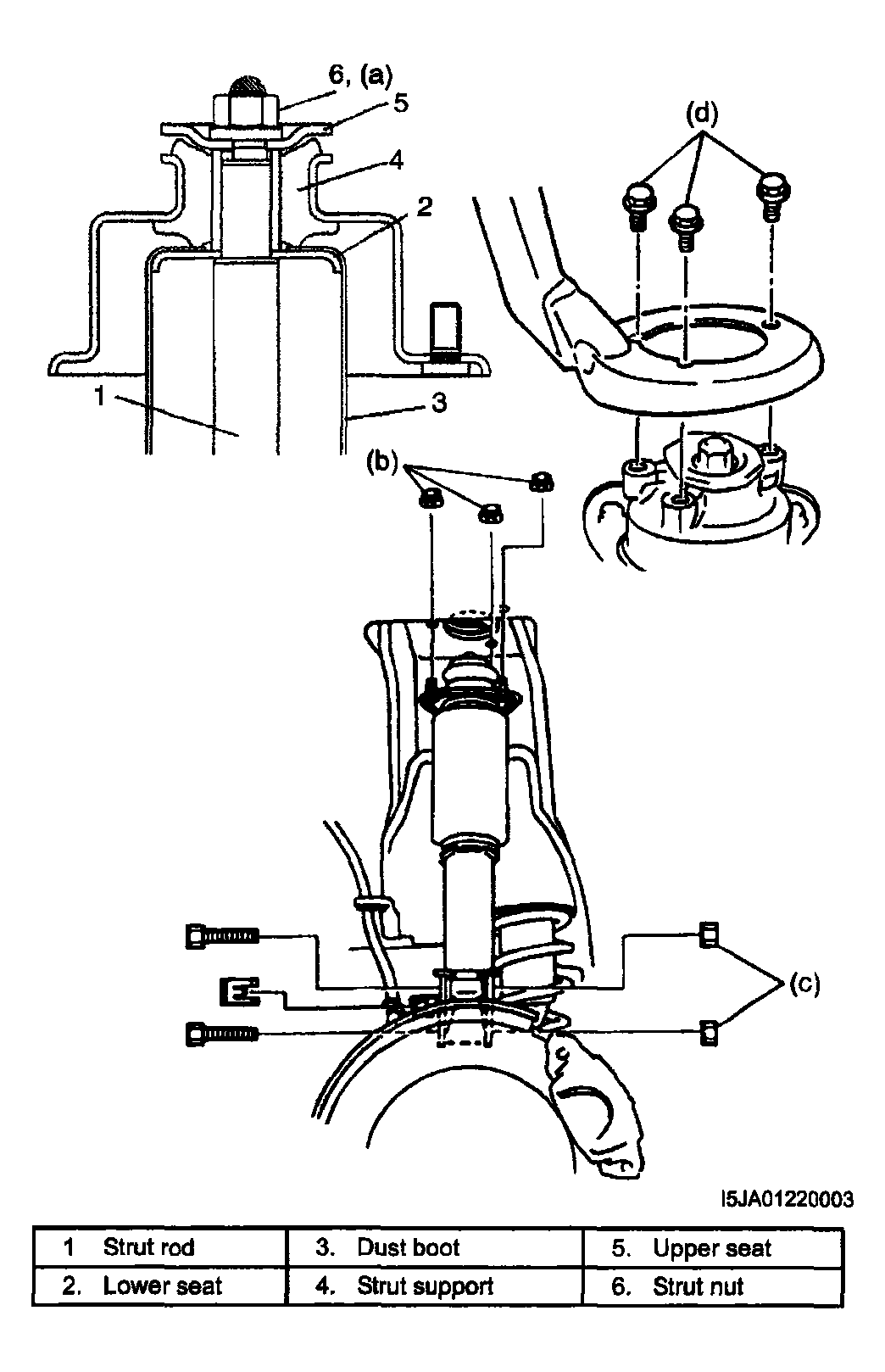

- Install strut by reversing removal Steps 1) - 9). Insert bolts in such a direction as shown in the figure.
- Torque all fasteners to specifications.
Tightening torque
Strut nut (a): 90 N.m (9.0 kg-m, 65.0 lb-ft)
Strut support nut (b): 55 N.m (5.5 kg-m, 40.0 lb-ft)
Bracket bolt (c): 95 N.m (9.5 kg-m, 69.0 lb-ft)
Tower bar mounting bolt (d): 50 N.m (5.0 kg-m, 36.5 lb-ft)
CAUTION:
Don't twist hose when installing brake hose. Install E-ring (1) as far as bracket end surface (2) as shown in the figure.
