Cooling System Circulation

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

While the engine is warmed up (thermostat closed), coolant circulates as follows.

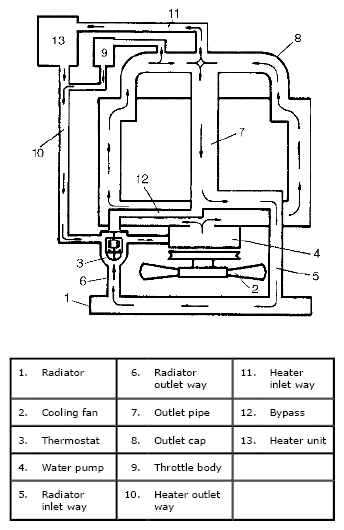

Fig 1: Cooling System Circulation Diagram (Thermostat Closed)
Courtesy of SUZUKI OF AMERICA CORP.
When coolant is warmed up to normal temperature and the thermostat opens, coolant passes through the radiator core to be cooled as well as the above flow circuit.

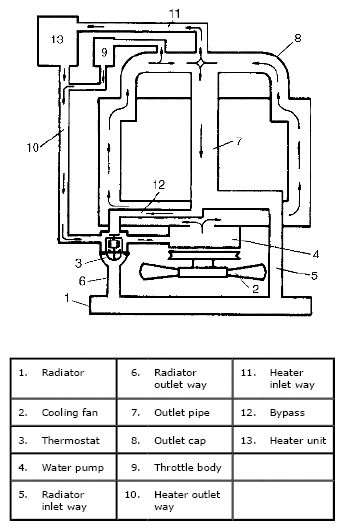

Fig 2: Cooling System Circulation Diagram (Thermostat Open)
Courtesy of SUZUKI OF AMERICA CORP.
