Crankshaft Position (CKP) Sensor Removal

Disconnect the negative battery cable.
Remove the air filter outlet hose.

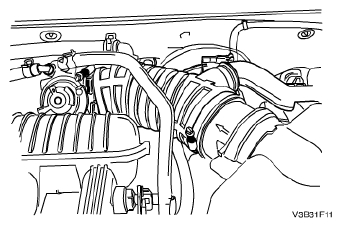

Fig 1: Identifying Air Filter Outlet Hose
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the crankshaft position (CKP) sensor wiring harness connector.

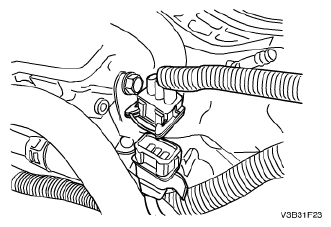

Fig 2: Disconnecting Crankshaft Position (CKP) Sensor Wiring Harness Connector
Courtesy of SUZUKI OF AMERICA CORP.
Remove the crankshaft position (CKP) sensor heat shield housing.

Fig 3: Identifying Crankshaft Position (CKP) Sensor Heat Shield Housing And Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the CKP sensor.

Fig 4: Removing/Installing CKP Sensor
Courtesy of SUZUKI OF AMERICA CORP.
