Exhaust Gas Recirculation (EGR) Valve Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the EGR valve.

    Tighten:

    Tighten the EGR valve retaining bolts to 20 - 30 N.m (15 - 22 lb-ft).

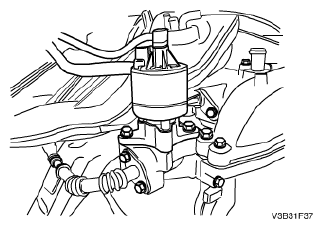

    Fig 1: EGR Valve And Retaining Bolts
    G04718805Courtesy of SUZUKI OF AMERICA CORP.
