Fuel Sender Removal

CAUTION: Be careful not to damage the fuel suction hose while removing the fuel pump from the fuel tank and installing the fuel pump to the fuel tank. The broken fuel suction hose can cause the incorrect fuel leveling.

Remove the fuel pump assembly. Refer to Fuel Pump Removal .

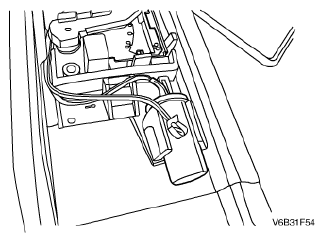

Fig 1: Identifying Fuel Suction Hose
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the 2 connectors from the fuel pump assembly.
NOTE: Pull the connectors with pressing the locking tap by using any tools such as a flat screw driver.

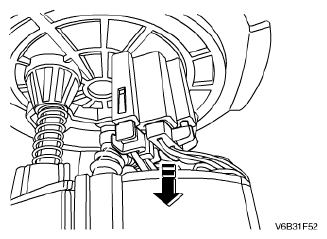

Fig 2: Disconnecting Connectors From Fuel Pump Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the connector from the fuel pump motor.
NOTE: Pull the connector with pressing the locking tap by using any tools such as a flat screw driver.

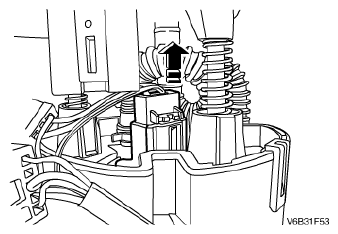

Fig 3: Disconnecting Connector From Fuel Pump Motor
Courtesy of SUZUKI OF AMERICA CORP.
Take the thermistor away from its bracket.

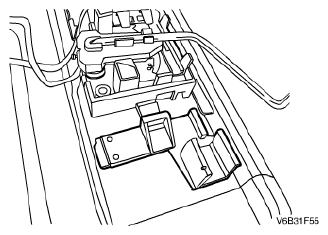

Fig 4: Identifying Thermistor And Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Remove the thermistor mounting bracket.
NOTE: Pull the bracket with pressing the locking tap by using any tools such as a flat screw driver.

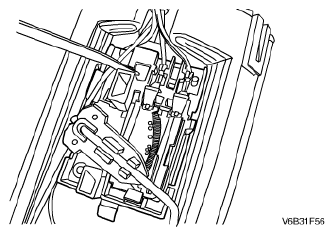

Fig 5: Removing Thermistor Mounting Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Remove the fuel sender by sliding it out.
NOTE: Pull the sender body with pressing the locking tap by using any tools such as a flat screw driver.

Fig 6: Identifying Fuel Sender
Courtesy of SUZUKI OF AMERICA CORP.
Install the fuel sender in the reverse order of removal.
Install the fuel pump assembly to the fuel tank. Refer to Fuel Pump Installation .
