Muffler - Rear Installation

Secure the rear muffler assembly to the rubber hangers on the tail pipe end.

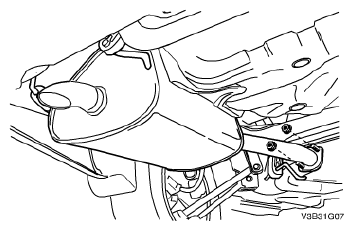

Fig 1: Identifying Rear Muffler Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Secure the nuts and the gasket from the rear muffler pipe flange-to-front muffler pipe flange.
Tighten:

Tighten the front muffler-to-rear muffler nuts to 40 N.m (30 lb-ft).

Fig 2: Identifying Front Muffler-To-Rear Muffler Nuts
Courtesy of SUZUKI OF AMERICA CORP.
