Exhaust Manifold Removal

Disconnect the negative battery cable.
Remove the front exhaust pipe lower bracket bolts and the front exhaust pipe lower bracket.
Remove the front exhaust pipe nuts.
Remove the pup converter gaskets.

Fig 1: Identifying Exhaust Pipe Nuts And Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the front exhaust pipe-to-front muffler nuts.
Remove the catalytic converter gasket.
Detach the front exhaust pipe assembly from the rubber hanger.

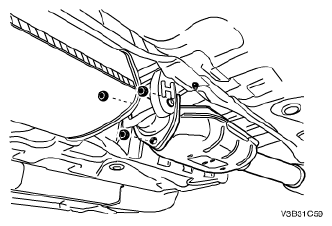

Fig 2: Identifying Front Exhaust Pipe-To-Front Muffler Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the Oxygen Sensor (O2S) connectors. Refer to OXYGEN SENSOR (O2S) REMOVAL .
Remove the exhaust manifold heat shield.

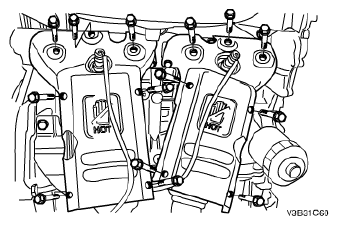

Fig 3: Identifying Exhaust Manifold Heat Shield
Courtesy of SUZUKI OF AMERICA CORP.
Remove the exhaust manifold retaining nuts and the exhaust manifolds.
Remove the exhaust manifold gaskets.

Fig 4: Identifying Exhaust Manifold Retaining Nuts
Courtesy of SUZUKI OF AMERICA CORP.
