Charging System Diagram

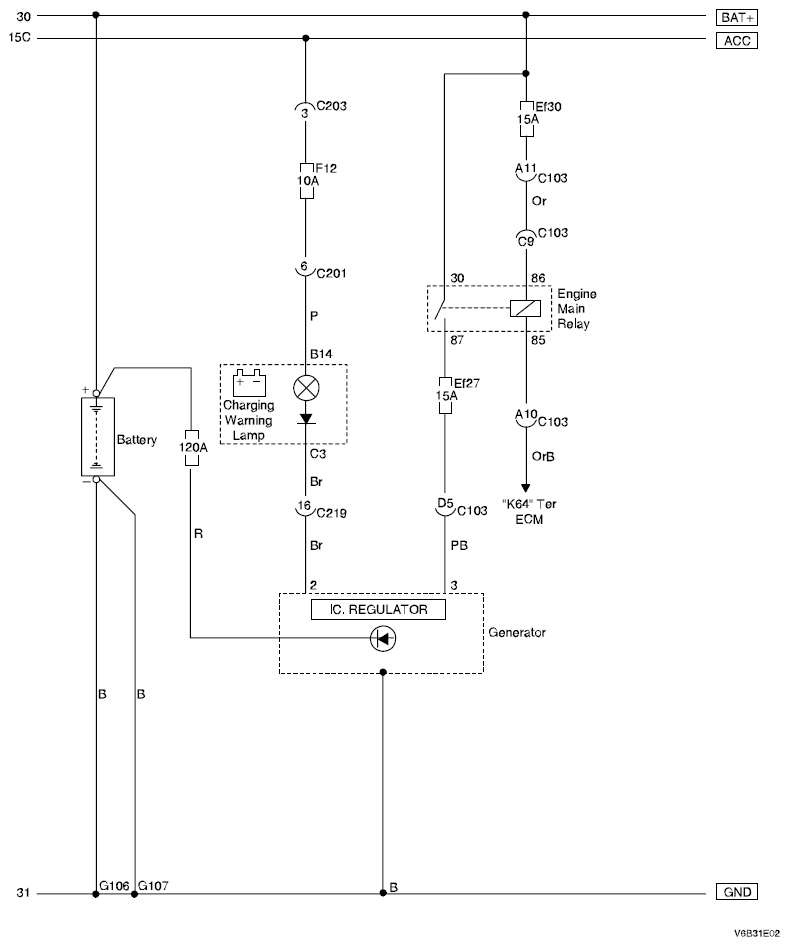

Fig 1: Charging System - Schematic And Routing Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
