Intelligent Switching Unit Circuit Diagram

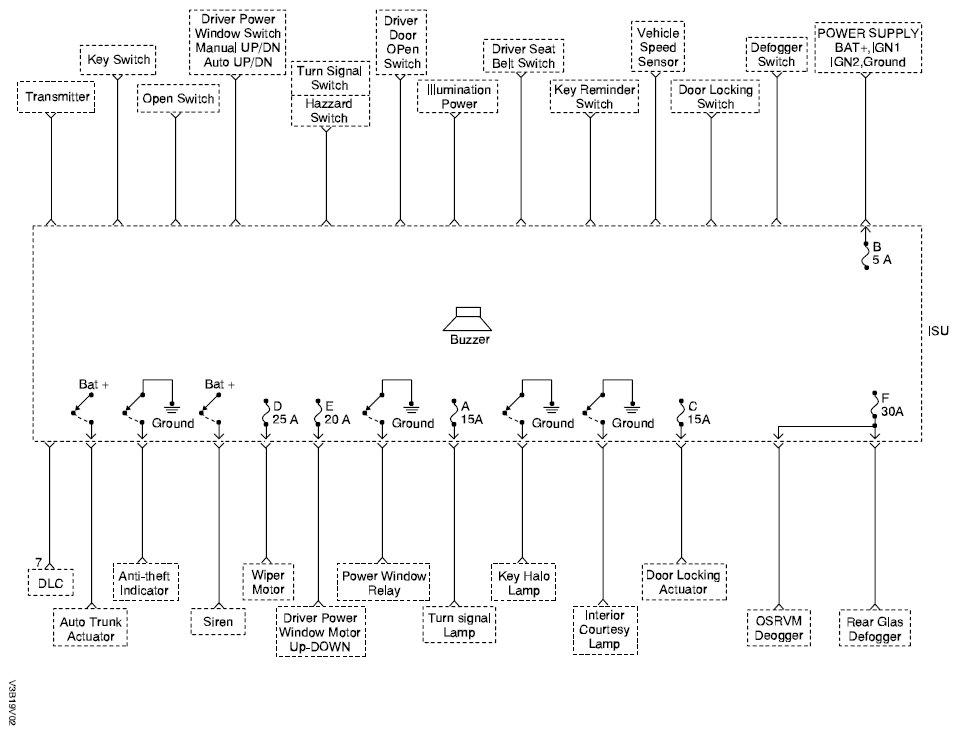

Fig 1: Intelligent Switching Unit Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
