Electrical Schematic Diagram - ABS

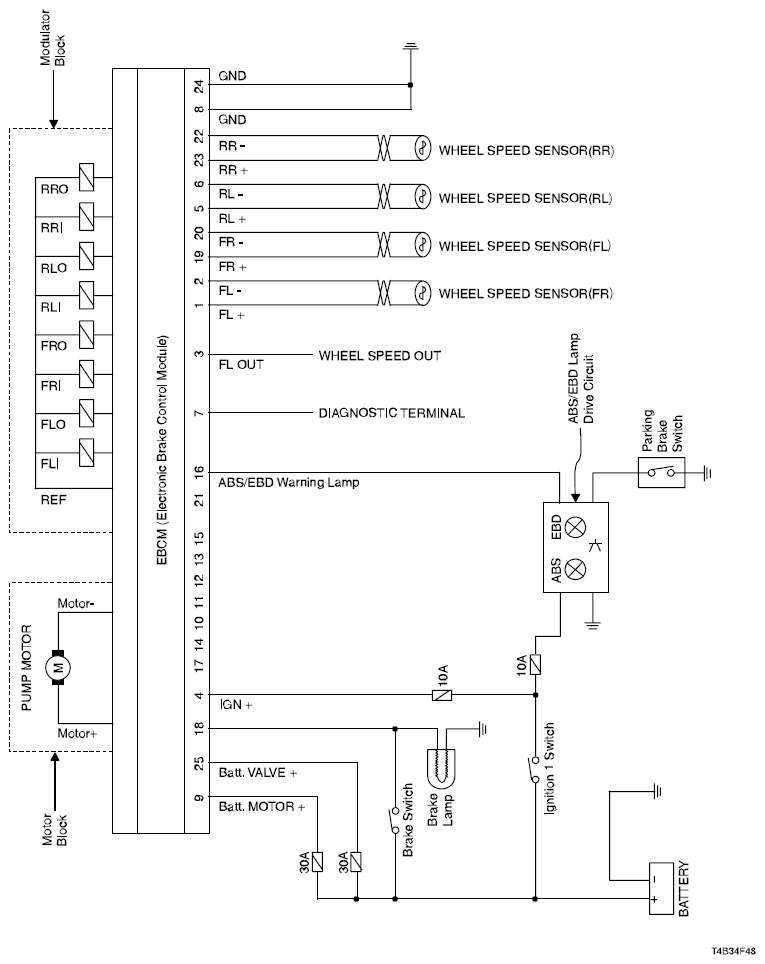

Fig 1: Electrical Schematic Diagram - ABS
Courtesy of SUZUKI OF AMERICA CORP.
