EBCM Assembly Removal and Installation: Removal

Disconnect the negative battery cable.
Removed the cooling surge tank. Refer to SURGE TANK REMOVAL .
Disconnect the ABS wiring harness connector from its socket on the EBCM.
Cover the connector and the socket with shop cloths to protect them from brake fluid.

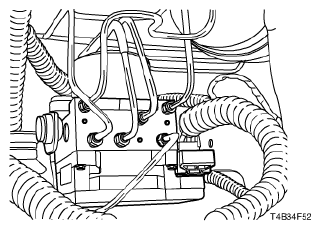

Fig 1: Identifying EBCM Connector And ABS Wiring Harness
Courtesy of SUZUKI OF AMERICA CORP.
Remove the brake pipes fitting nuts from the hydraulic unit.
NOTE: Take care not to allow air into the hydraulic unit or into the brake pipes from the master cylinder. If air gets into the hydraulic unit, it will require a bleeding procedure using a scan tool programmed for the MGH-25 ABS system. As long as no air enters the hydraulic unit, a simple bleeding procedure is all the system will require.
Remove the mounting bracket bolts on the hydraulic unit.
Remove the EBCM assembly.
