Antilock Braking Mode Description: Hold

When the EBCM (Electronic Brake Control Module) senses the wheel slip, the EBCM closes the NO valve and keeps the NC valve closed in the brake pressure modulator valve in order to isolate the system. This holds the pressure steady on the brake so that the hydraulic pressure does not increase or decrease.

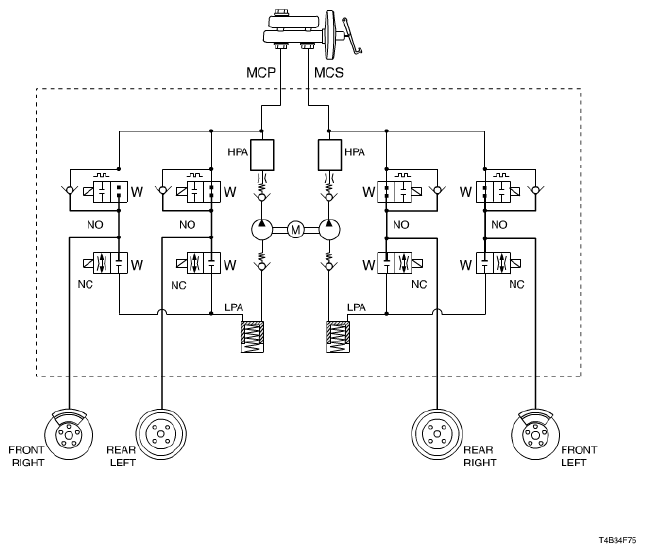

Fig 1: Identifying Antilock Braking Mode - Hold
G04719524Courtesy of SUZUKI OF AMERICA CORP.
