Parking Brake Lever Installation

Install the parking brake switch to the parking brake lever assembly.
Tighten:

Tighten the parking brake switch screw to 4 N.m (35 lb-in.).
Install the parking brake lever assembly with bolts.
Tighten:

Tighten the parking brake lever assembly bolts to 23 N.m (17 lb-ft).

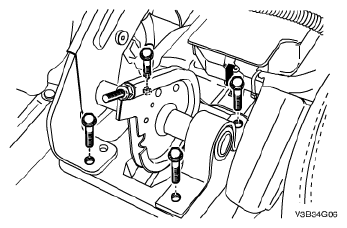

Fig 1: Identifying Parking Brake Cable Rod And Parking Brake Cable Ends
Courtesy of SUZUKI OF AMERICA CORP.
Install the parking brake cable ends to the parking brake cable rod.

Fig 2: Identifying Parking Brake Cable Rod And Parking Brake Cable Ends
Courtesy of SUZUKI OF AMERICA CORP.
Install the parking brake adjustment nut to the eye bolt pull rod of the parking brake lever assembly and be sure to check the parking brake adjustment by referring the original removal adjustment nut measurement taken in the removal procedure. Refer to Parking Brake Lever Removal .
Install the parking brake/gearshift console hood. Refer to FLOOR CONSOLE INSTALLATION .

Fig 3: Identifying Parking Brake Adjustment Nut
Courtesy of SUZUKI OF AMERICA CORP.
