Power Sunroof System Diagram

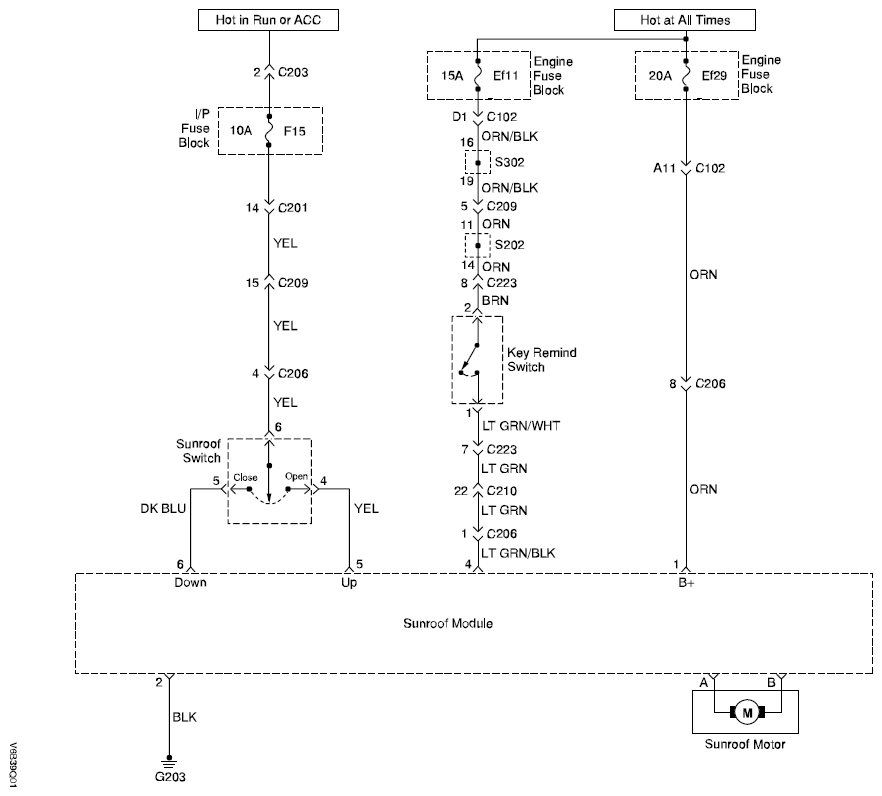

Fig 1: Power Sunroof System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
