Electric Control OSRV (Outside Rear View) Mirror System Diagram

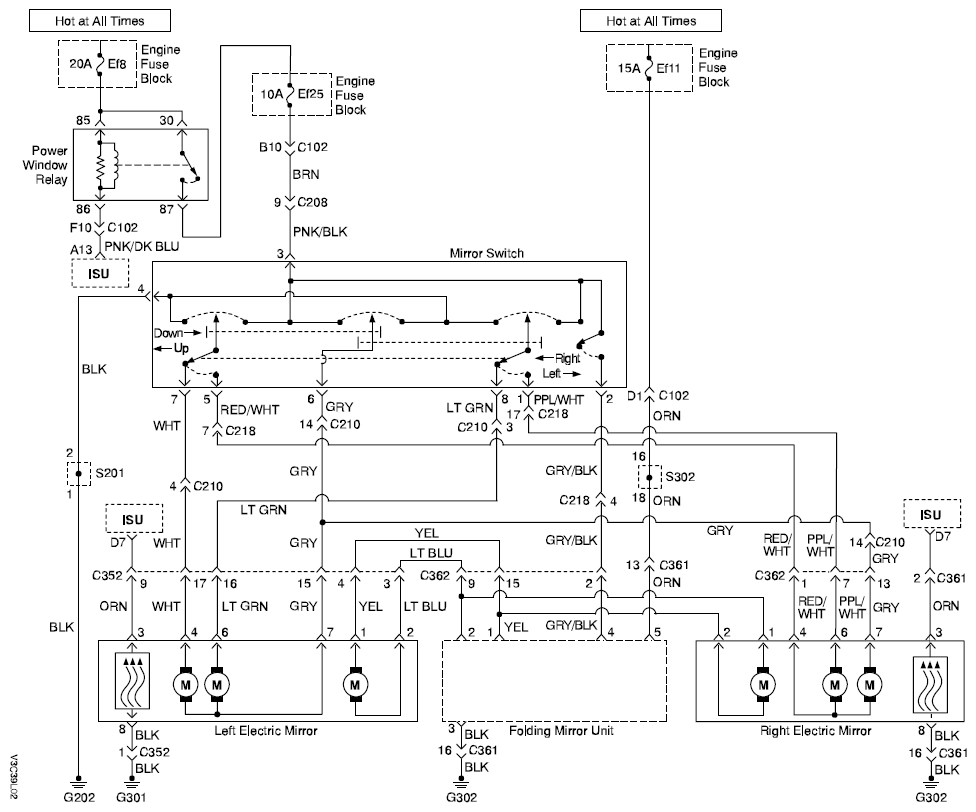

Fig 1: Electric Control OSRV (Outside Rear View) Mirror System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
