Front Door Glass Removal

  1. Remove the door seal trim. Refer to DOOR SEAL TRIM REMOVAL .
  2. Remove the B-pillar molding. Refer to B-PILLAR MOLDING REMOVAL .
  3. Remove the screws that secure the glass to the window regulator.
  4. Remove the glass from the door.

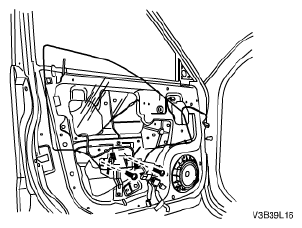

    Fig 1: Identifying Glass, Window Regulator & Screws
    G04720461Courtesy of SUZUKI OF AMERICA CORP.
