Area Covered by Anti-Rust Agents

NOTE:

Coating thickness: 0.05 mm
Hatching indicated anti-rust agent coating areas.
Follow the below figure for paint repair or refinishing.

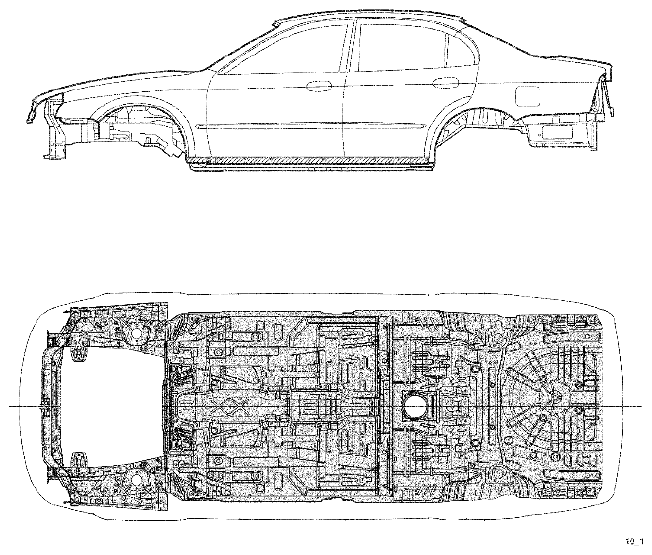

Fig 1: Identifying Area Covered By Anti-Rust Agents (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

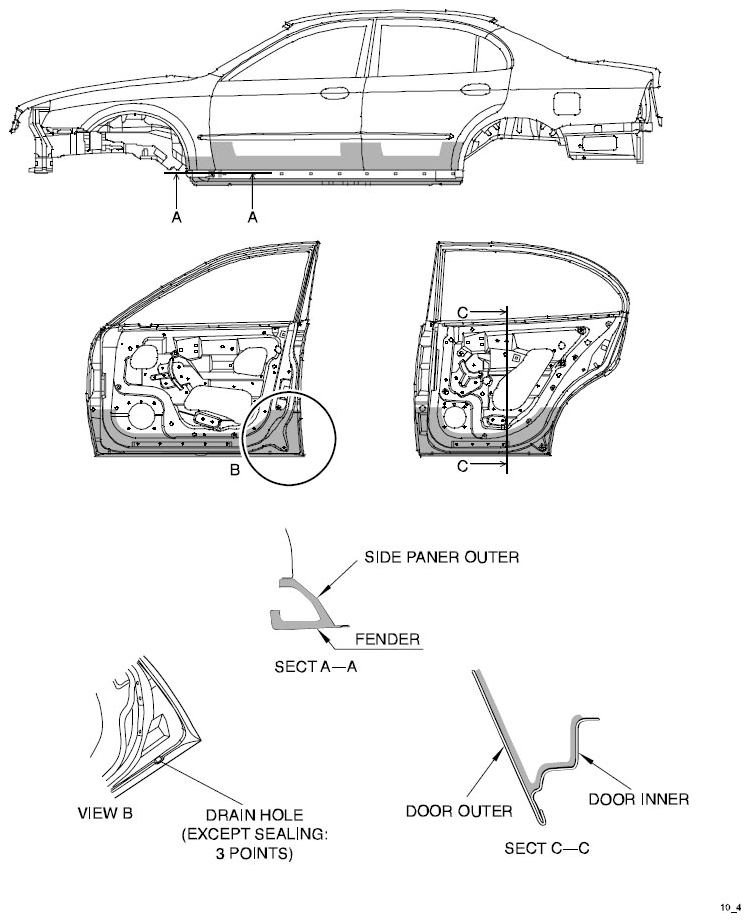

Fig 2: Identifying Area Covered By Anti-Rust Agents (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
