Front Frame

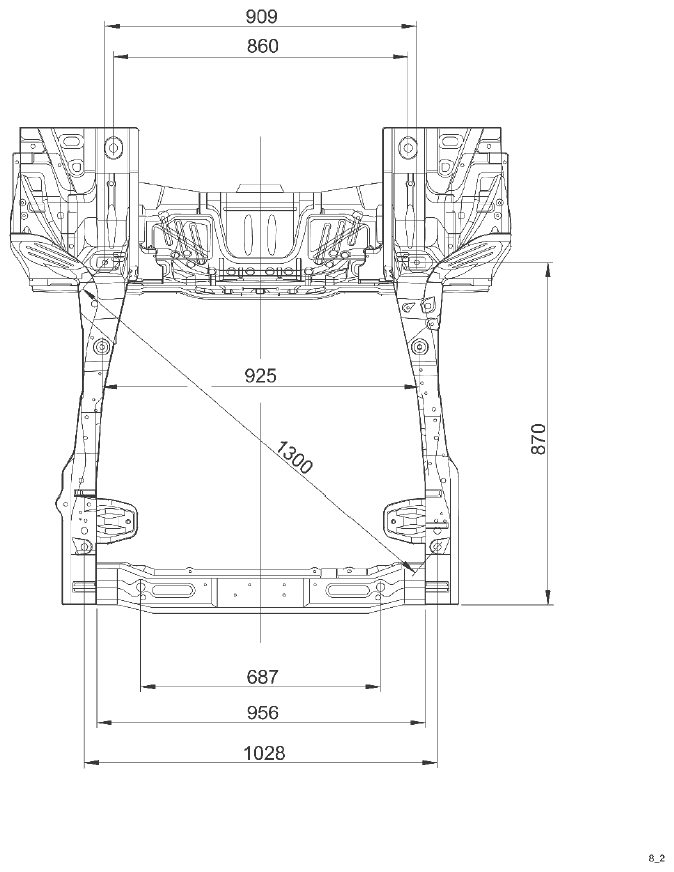

Fig 1: Identifying Front Frame Dimension - Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
