Front Panel
Unit: mm

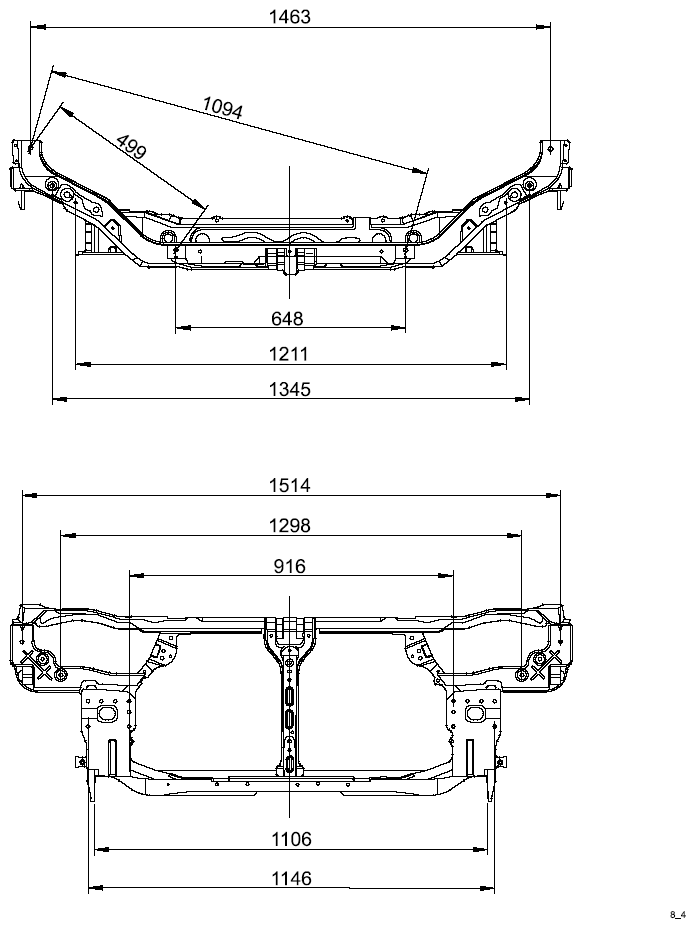

Fig 1: Identifying Front Panel - Body Dimension
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
