Engine Room

Unit: mm

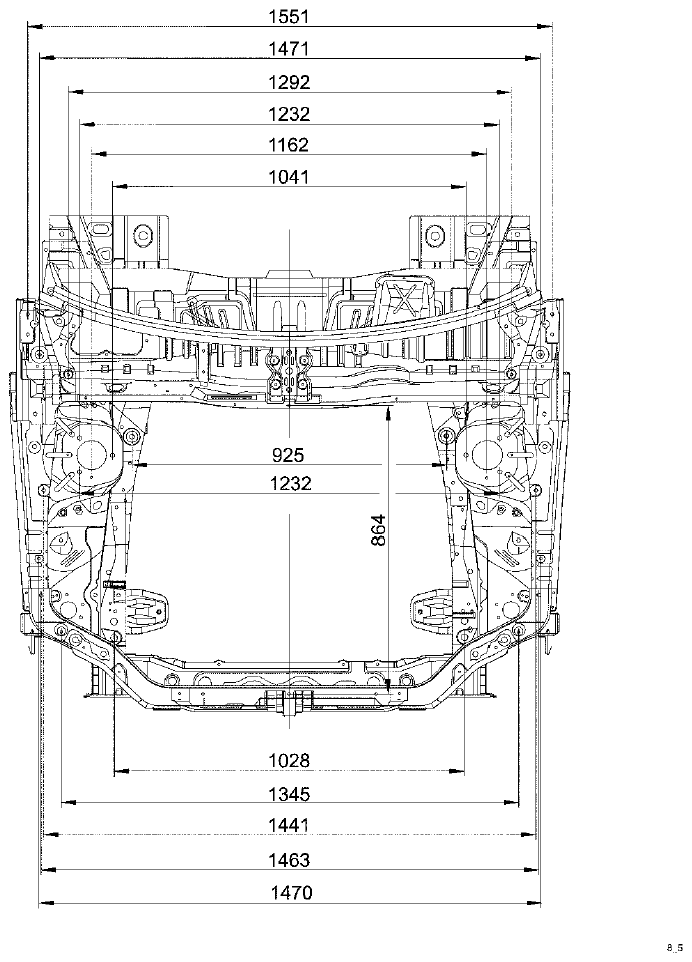

Fig 1: Identifying Engine Room Dimension (1 Of 3)
G04720739Courtesy of SUZUKI OF AMERICA CORP.

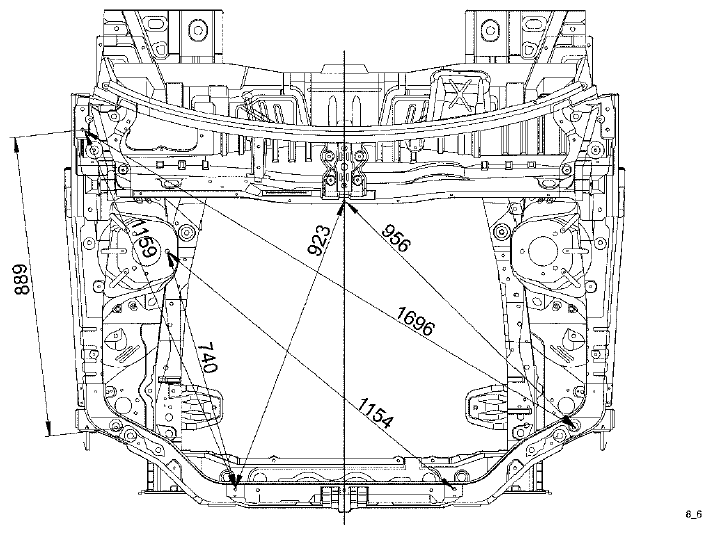

Fig 2: Identifying Engine Room Dimension (2 Of 3)
G04720740Courtesy of SUZUKI OF AMERICA CORP.

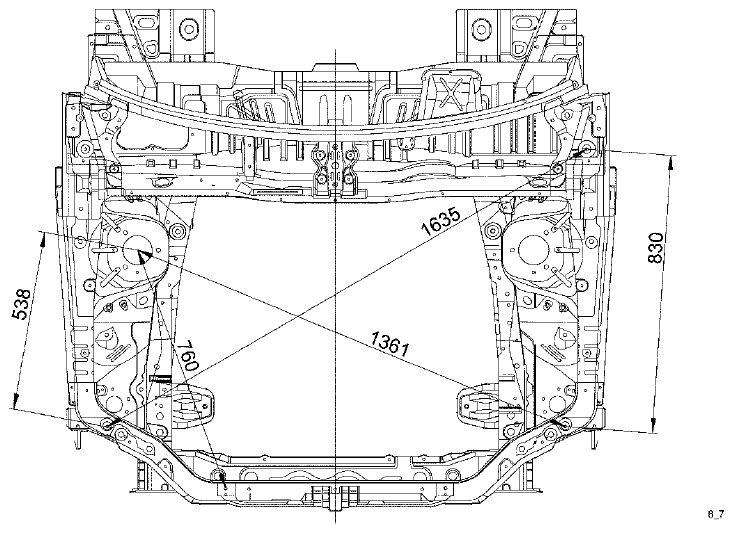

Fig 3: Identifying Engine Room Dimension (3 Of 3)
G04720741Courtesy of SUZUKI OF AMERICA CORP.
