Deadener Repair

Remove the related parts.
- Seats, carpet.
- Trims, others.
Remove of the damaged deadener.
- Peel off the damaged deadener with a steel spatula, carefully.
Clean and dry.
- Before applying the deadener, thoroughly clean and dry the areas to be applied.
Prelocate the new deadener on the panels to be applied.
NOTE: Avoid the parts mounting holes and service holes.

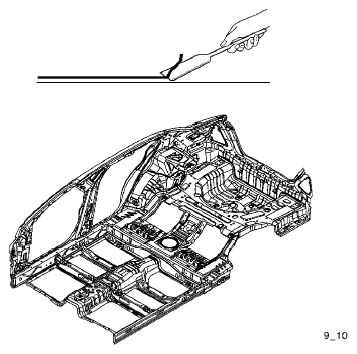

Fig 1: Removing Damaged Deadener
Courtesy of SUZUKI OF AMERICA CORP.
Adhension of deadener.
- Heat the surface of deadener with a torch of heating gun until it adheres itself.
- Push and adhere to the panel with a rubber spatula.
  NOTE: In order to take full advantage of the deadener, its face must adhere and contact the panels perfectly.

  CAUTION: Be careful not to burn the composite parts when beating.

  Fig 2: Heating Surface Of Deadener With Heating Gun
  Courtesy of SUZUKI OF AMERICA CORP.
