DTC 37: IMMO. Antenna Short to Ground/Open Circuit Description: Diagnostics

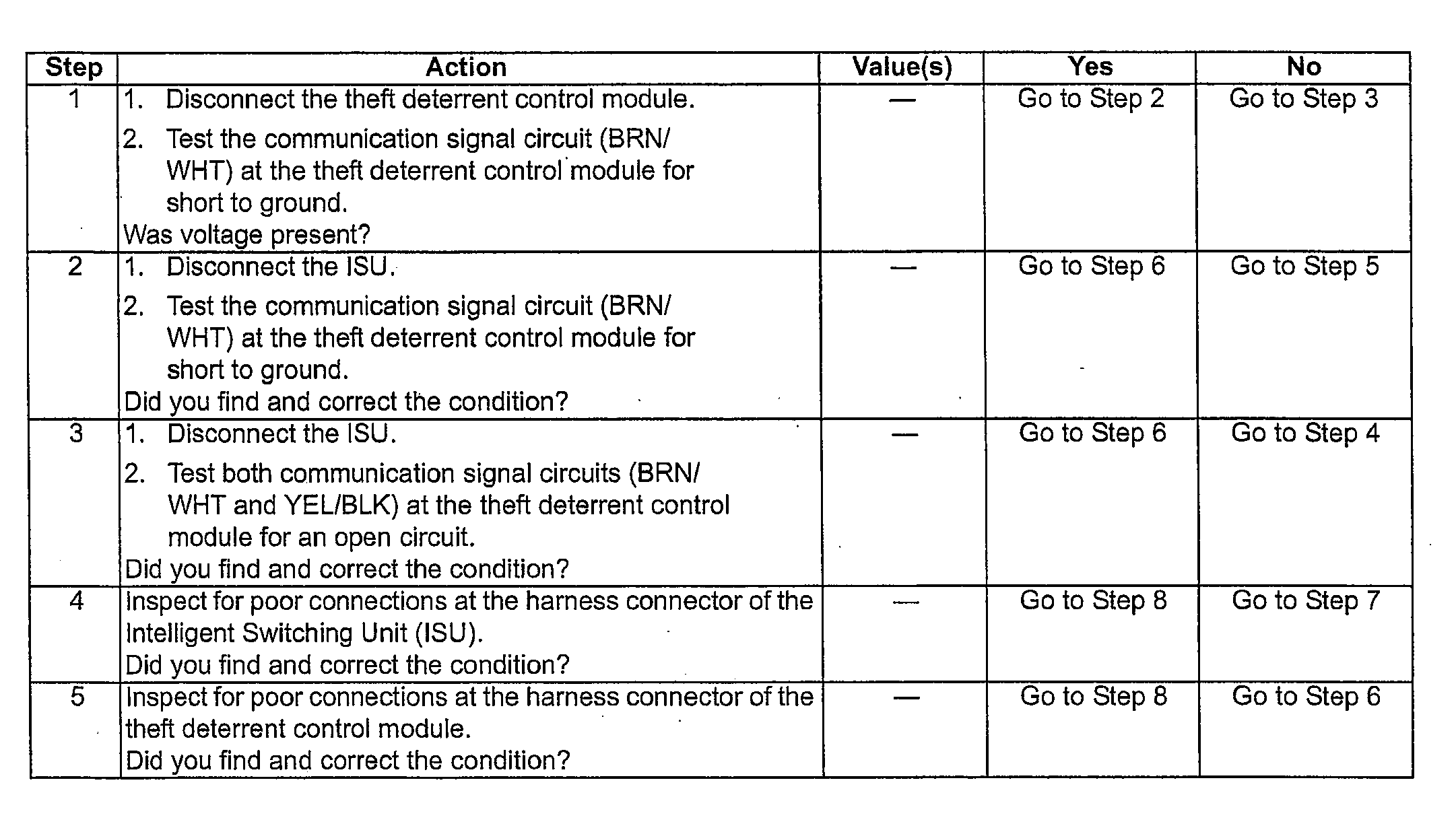

Fig 1: Identifying DTC 37 Diagnostics Table (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

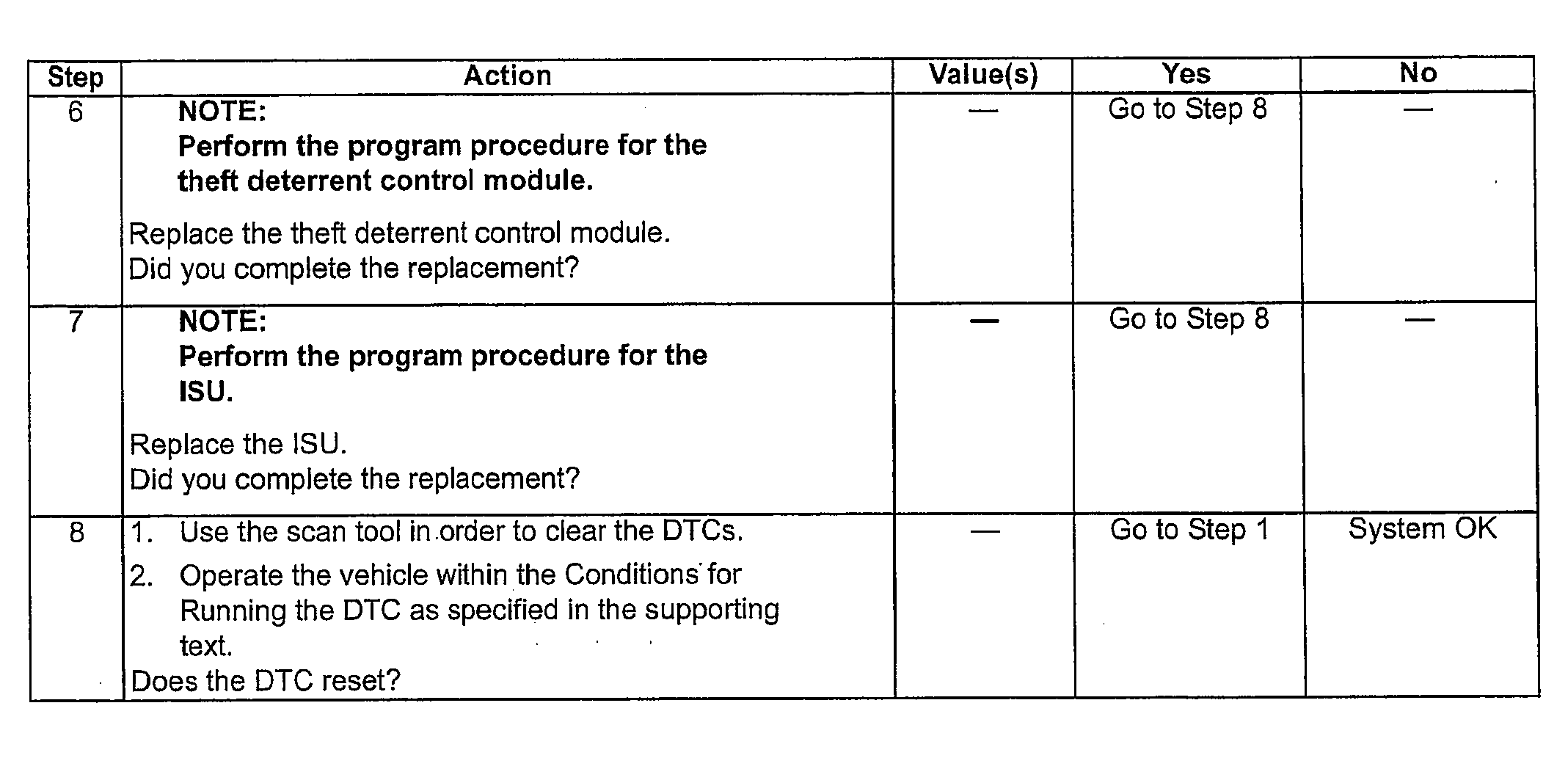

Fig 2: Identifying DTC 37 Diagnostics Table (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
