DTC P0496: Evaporative (EVAP) Emission System Flow During Non-Purge: Notes

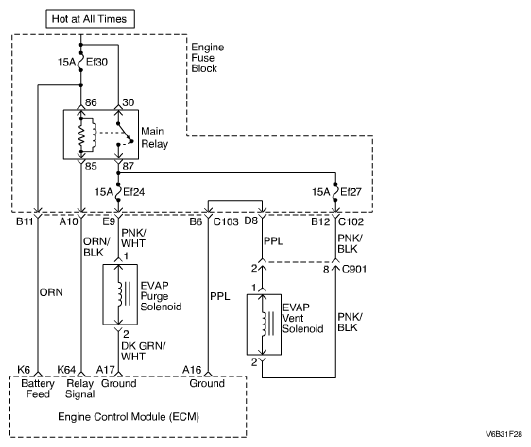

Fig 1: Evaporative (EVAP) Emission System Flow During Non-Purge - Wiring Diagram
G04718727Courtesy of SUZUKI OF AMERICA CORP.
