Oil Pan / Oil Pump Removal

  1. Disconnect the negative battery cable.
  2. Remove the engine under cover.

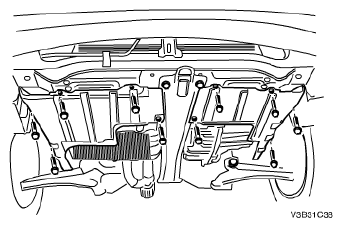

    Fig 1: Identifying Engine Under Cover
    G04718902
  3. Remove the oil pan drain plug and drain the engine oil.

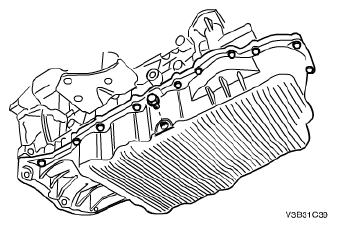

    Fig 2: Identifying Oil Pan Drain Plug
    G04719057
  4. Remove the oil pan flange-to-transaxle bolts.
    Fig 3: Oil Pan Flange-To-Transaxle Bolts
    G04719058
  5. Remove the front engine mount bracket-to-damper bush bolt.
  6. Remove the center front suspension member bolts.

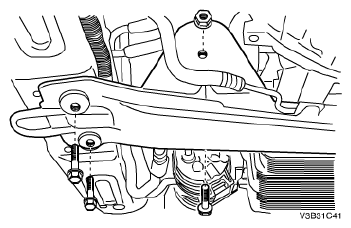

    Fig 4: Identifying Front Engine Mount Bracket-To-Damper Bush Bolt
    G04719059
  7. Remove the oil pan retaining bolts and the oil pan.

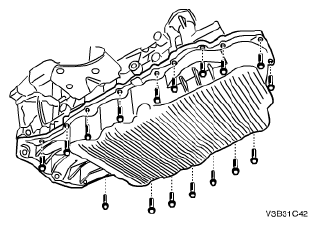

    Fig 5: Identifying Oil Pan Retaining Bolts
    G04718946
  8. Remove the oil pump sprocket cover bolts and the oil pump sprocket cover.

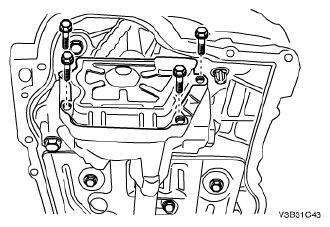

    Fig 6: Identifying Oil Pump Cover Bolts
    G04719061
  9. Remove the oil pump sprocket retaining nut and the oil pump sprocket.
    Fig 7: Identifying Oil Pump Sprocket Retaining Nut
    G04719062
  10. Remove the oil suction pipe bracket bolt.
  11. Remove the 4 oil pump retaining bolts and the oil pump.
  12. Remove the oil ring from the oil pump.
  13. Remove the 2 oil suction pipe-to-oil pump retaining bolts.
  14. Remove the oil suction pipe gasket.
    Fig 8: Identifying Oil Suction Pipe-To-Oil Pump Retaining Bolts
    G04719063
