Exhaust Front Pipe Installation

Install the exhaust front pipe and the gasket.
Install the exhaust front muffler to exhaust front pipe nuts.
Tighten:

Tighten the front muffler to exhaust front pipe nuts to 30 N.m (22 lb-ft).

Fig 1: Identifying Exhaust Front Pipe To Exhaust Front Muffler Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Connect the exhaust front pipe from the rubber hanger.

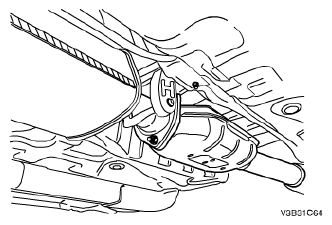

Fig 2: Identifying Exhaust Front Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Install the exhaust lower bracket.
Install the exhaust lower bracket bolts.
Tighten:

Tighten the exhaust lower bracket bolts to 40 N.m (30 lb-ft).
Install the exhaust front pipe nuts and the gasket.
Tighten:

Tighten the exhaust front pipe nuts to 40 N.m (30 lb-ft).

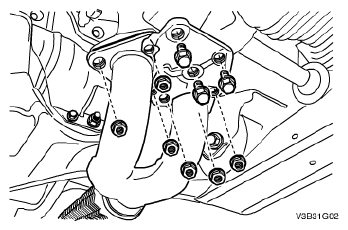

Fig 3: Identifying Exhaust Front Pipe Nuts And Bolts
Courtesy of SUZUKI OF AMERICA CORP.
